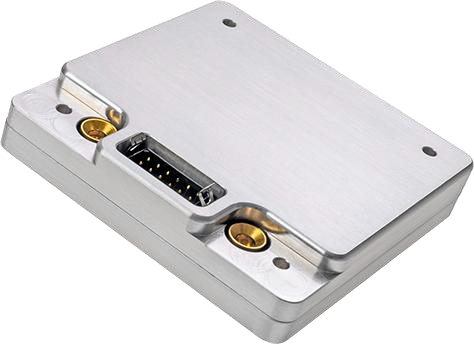

TTRM4502-D02
5300-5900 MHz, 10 W SISO Bi-Directional Amplifier
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
Features
- Temperature Monitor Output
- Over-Temperature Protection
- Amplifier Status Output
- Tx/Rx Status Monitor
- Manual Tx/Rx Switching
Applications
- Unmanned Systems
- Military or Commercial Radio Systems
- Aircraft Systems
| Model | Frequency Low (MHz) | Frequency High (MHz) | Tx Gain (dB) | Supply Voltage (Vdc) | Rx Noise Figure (dB) | Rx Gain (dB) | Output FreqLo (MHz) | Output FreqHi (MHz) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| TTRM4502-D02 | 5300 | 5900 | 27 | 10-32 | 2-2.5 | 16.5 | 5300 | 5900 | 40 | 2.3 × 2.3 × 0.45 |
