TA4002R

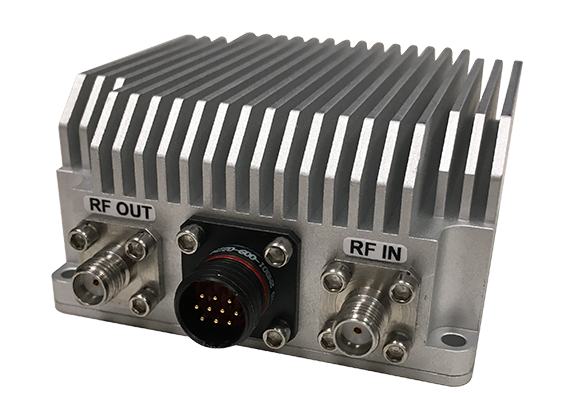

4400-5000 MHz 10 W SISO Power Amplifier
The TA4002R SISO Power Amplifier is a class AB GaN module with an operating frequency range of 4400 to 5000 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +10 to +30 VDC and a saturated RF output power of +40 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are key.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
| Model | Frequency Low (MHz) | Frequency High (MHz) | P1dB dBm (Typ) | Tx Gain (dB) | Supply Voltage (Vdc) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|
| TA4002R | 4400 | 5000 | 40 | 27 | 10-30 | 40 | 2.73 x 2.53 x 1.31 |
