TA1217

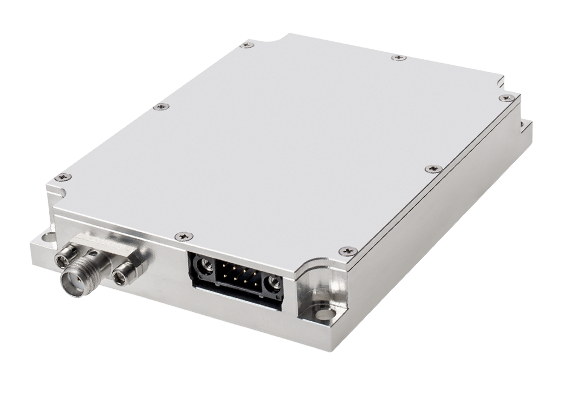

30-2700 MHz 8 W Power Amplifier
The TA1217 Power Amplifier is a class AB GaN module with an operating frequency range of 30 to 2700 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +12 to +30 VDC and a saturated RF output power of +39 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are key.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
| Model | Frequency Low (MHz) | Frequency High (MHz) | P1dB dBm (Typ) | Tx Gain (dB) | Supply Voltage (Vdc) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|
| TA1217 | 30 | 2700 | 36 | 39 | 12-30 | 39 | 3.25 x 2.42 x 0.54 |
