TA1160

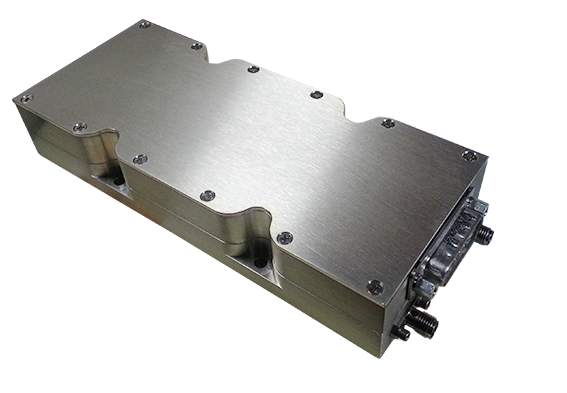

5500-8500 MHz 20 W SISO Power Amplifier
The TA1160 SISO Power Amplifier is a class AB GaN module with an operating frequency range of 5500 to 8500 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +12 to +30 VDC and a saturated RF output power of +43 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are key.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
| Model | Frequency Low (MHz) | Frequency High (MHz) | P1dB dBm (Typ) | Tx Gain (dB) | Supply Voltage (Vdc) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|
| TA1160 | 5500 | 8500 | 37 | 52.5 | 12-30 | 43 | 6 x 2.5 x 1.063 |
