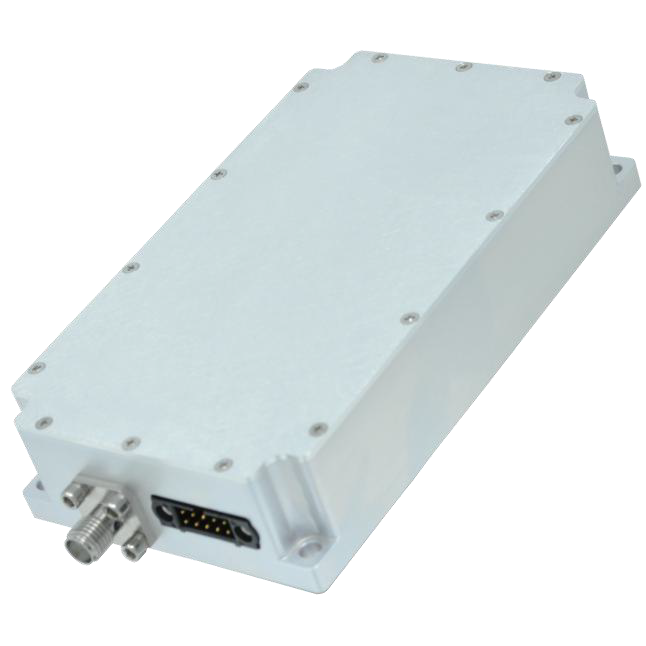

TA1056
20-1000 MHz 40 W SISO Power Amplifier
The TA1056 SISO Power Amplifier is a class AB GaN module with an operating frequency range of 20 to 1000 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +27 to +30 VDC and a saturated RF output power of +46 dBm. With the capability of supporting any signal type
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
| Model | Frequency Low (MHz) | Frequency High (MHz) | P1dB dBm (Typ) | Tx Gain (dB) | Supply Voltage (Vdc) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|
| TA1056 | 20 | 1000 | 44 | 50 | 27-30 | 46 | 3.99 x 2.3 x 0.85 |
