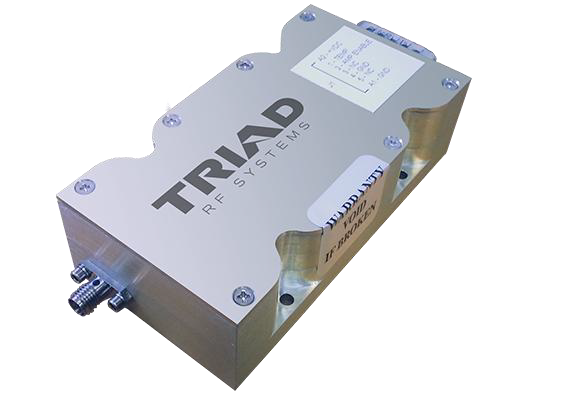

TA1049
700-6000 MHz 10 W SISO Power Amplifier
The TA1049 SISO Power Amplifier is a class AB GaN module with an operating frequency range of 700 to 6000 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +9 to +36 VDC and a saturated RF output power of +40 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
| Model | Frequency Low (MHz) | Frequency High (MHz) | P1dB dBm (Typ) | Tx Gain (dB) | Supply Voltage (Vdc) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|
| TA1049 | 700 | 6000 | 35 | 40 | 9-36 | 40 | 3.75 x 2 x 1.063 |
